Optimus
Automatic Folding Scooter

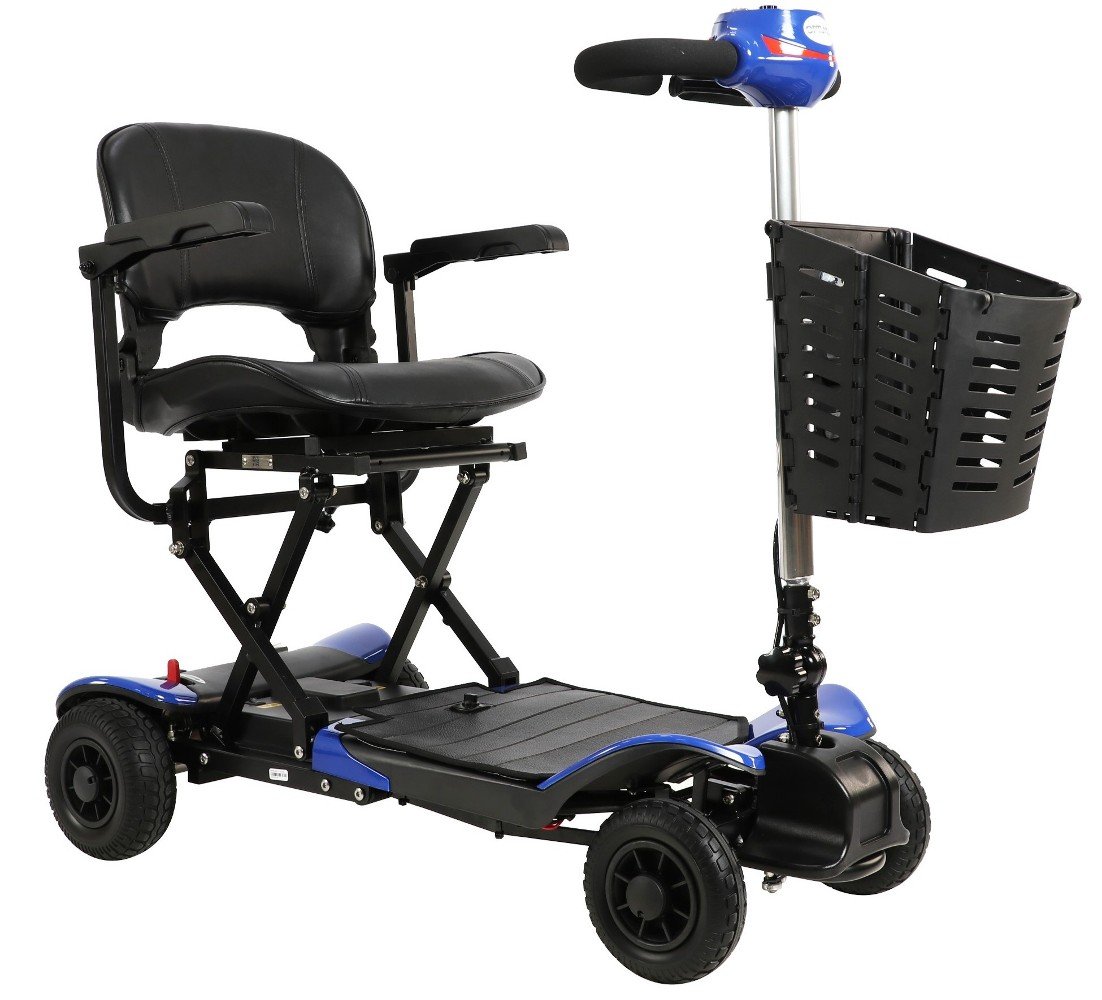

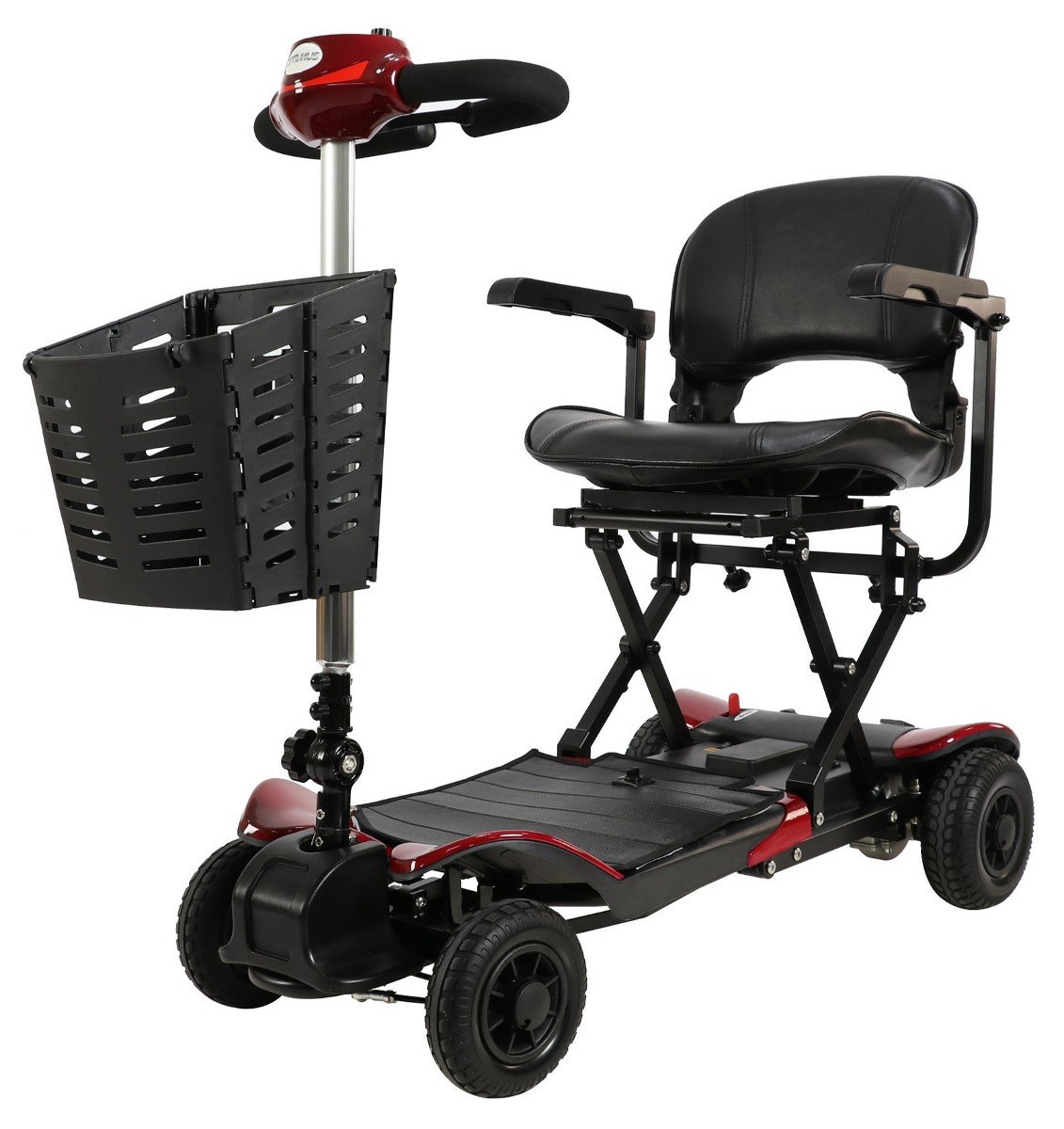

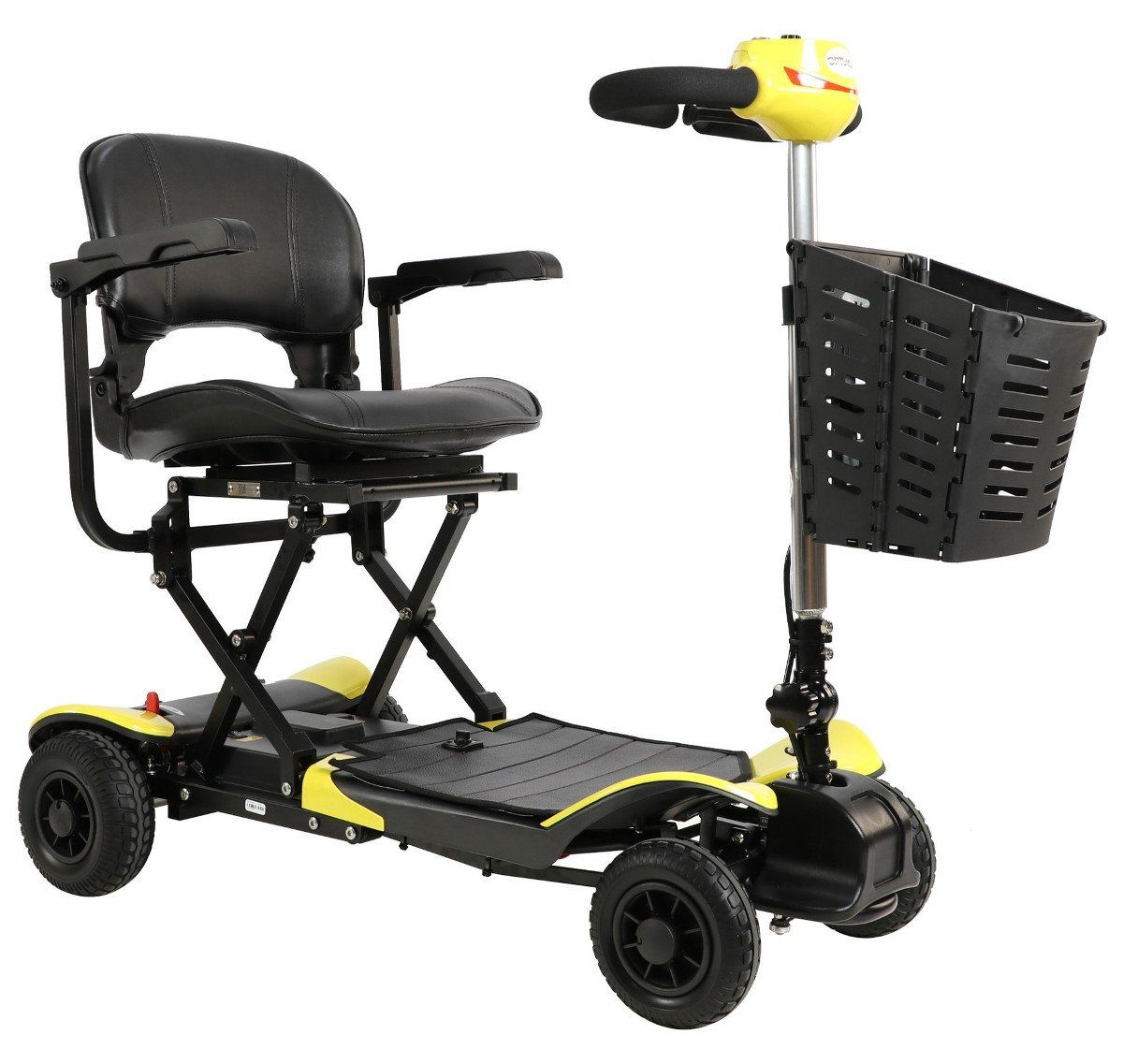

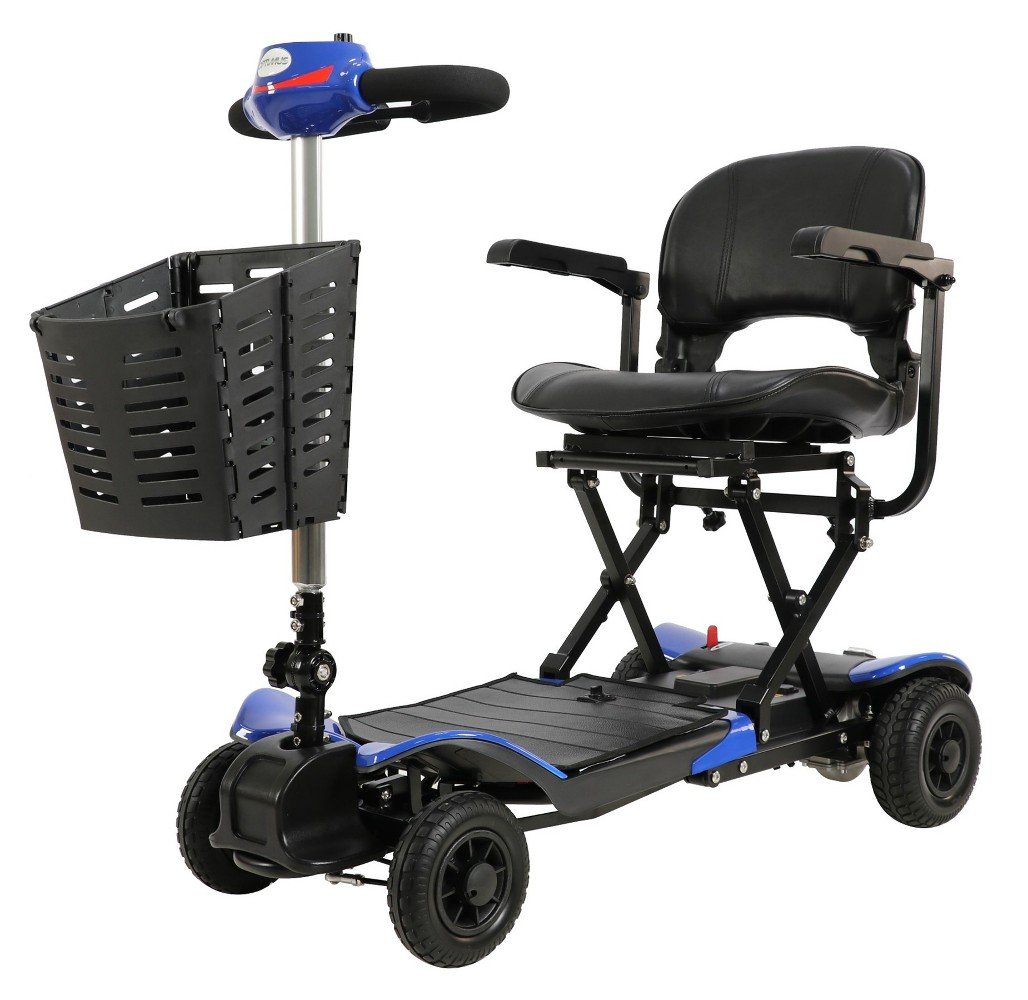

The Optimus is one of the worlds fully automatic electric folding 4 wheel mobility scooters. The Optimus folds and unfolds all by itself with the simple push of a button. This makes the Optimus the easiest and simplest portable mobility scooter ever made.
The Optimus Offers Full Remote Control operation as well as manual if preferred.
Providing a 300lb weight capacity and comes standard with a lightweight Lithium battery (With a range of 13.5 Miles on a single charge).
Ultra portable electric scooter offering the ultimate convenience.
Remote Control
Fully Automatic Folds & Unfolds
Ultra Portable
Highly Adjustable Arm Rest
Delta Tiller
Perfect for Aircraft & Cruise Ships
300lb Weight Capacity
13.5 Miles on a Single Charge
Lithium Battery
Optimus User Manual.pdf

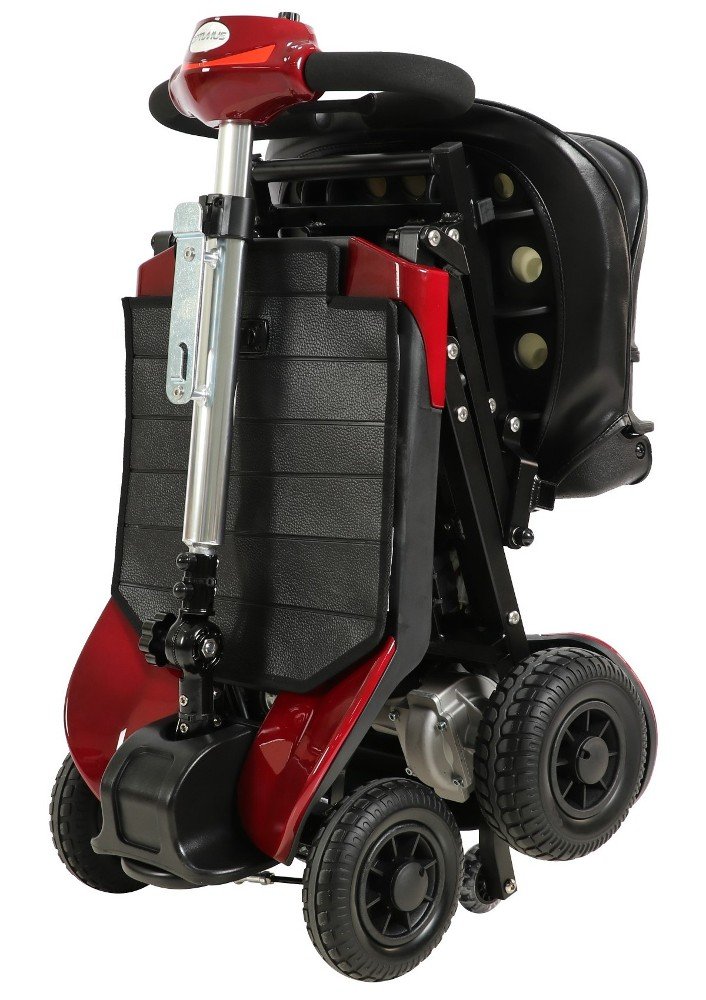

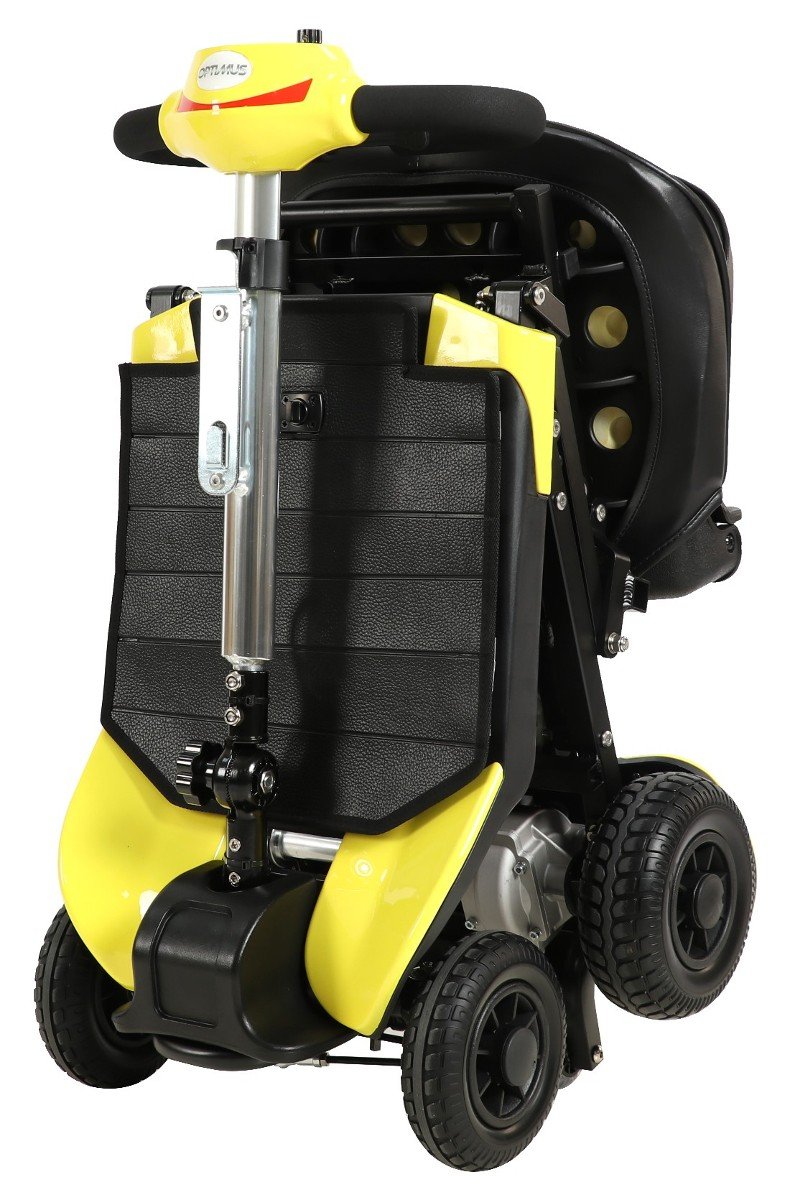

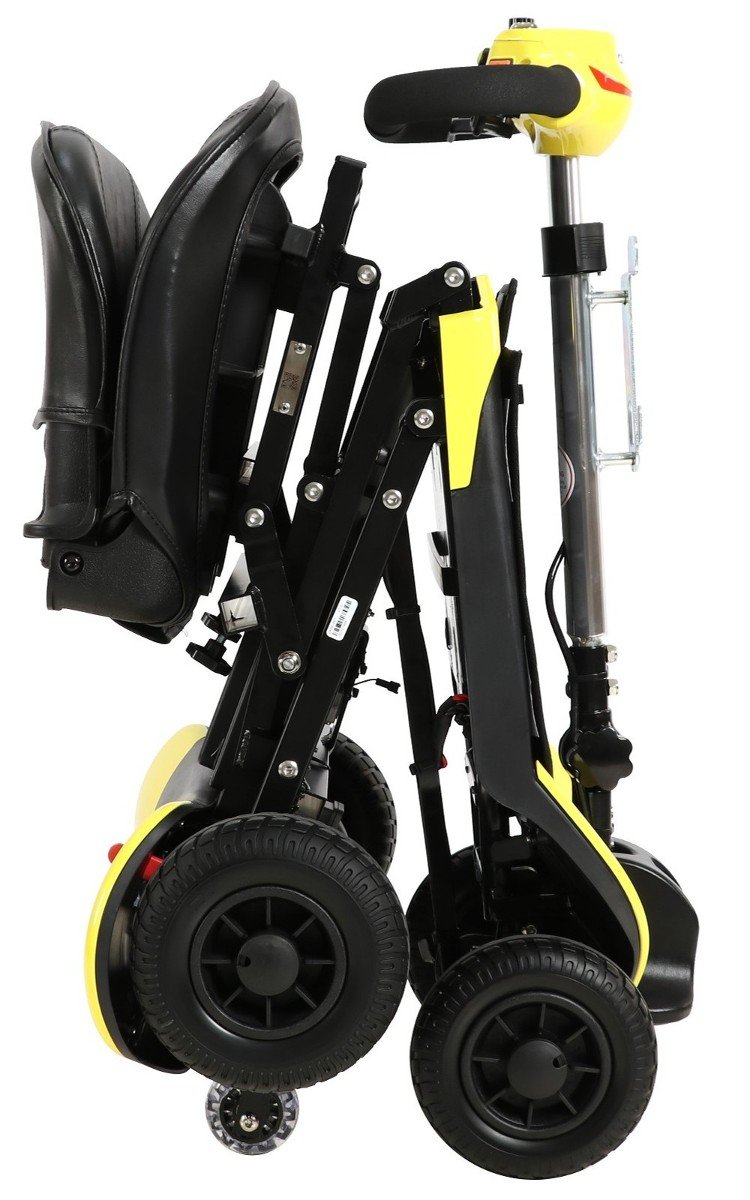

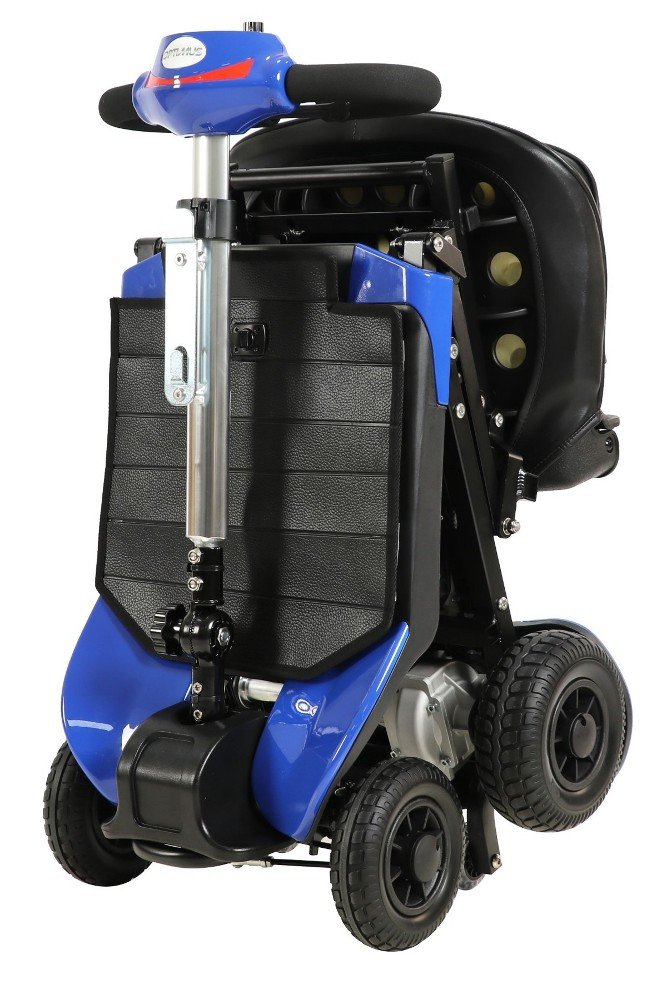

The Optimus folds automatically into a lightweight compact size weighing only 52 Lbs and a space of only 17″ Long – 17″ wide and 24″ High.

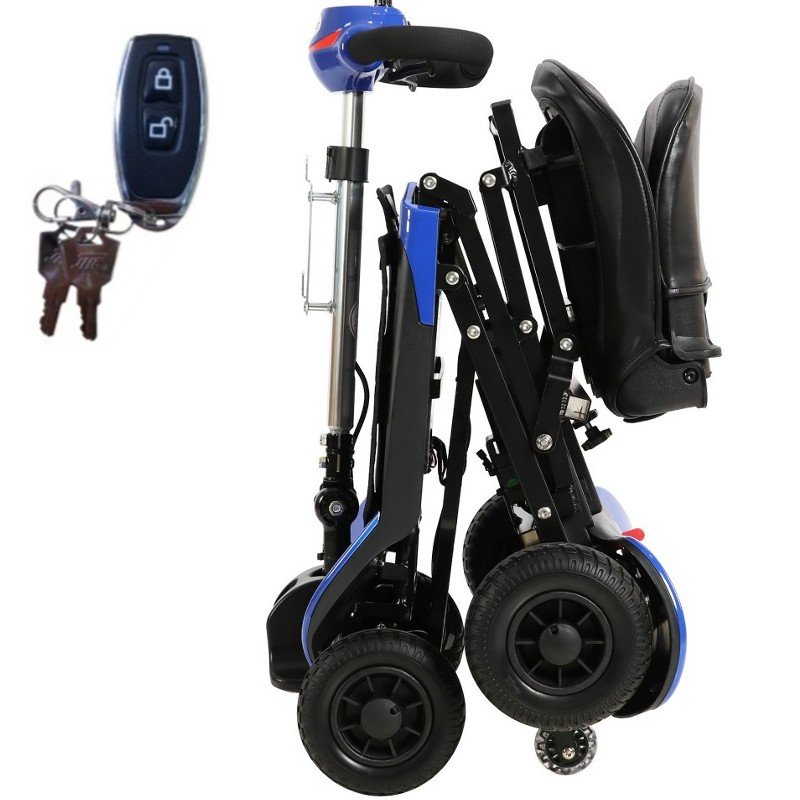

The Optimus is an automatic folding mobility scooter. With just a touch of a button on a remote control it folds and unfolds by itself.
The perfect choice to save the hassle when folding and unfolding a scooter, making it the best travel companion.
4 wheels for maximum stability & safety.
Ideal for traveling – plane, train, boat and car.
Fully adjustable tiller – height and angle for maximum comfort.

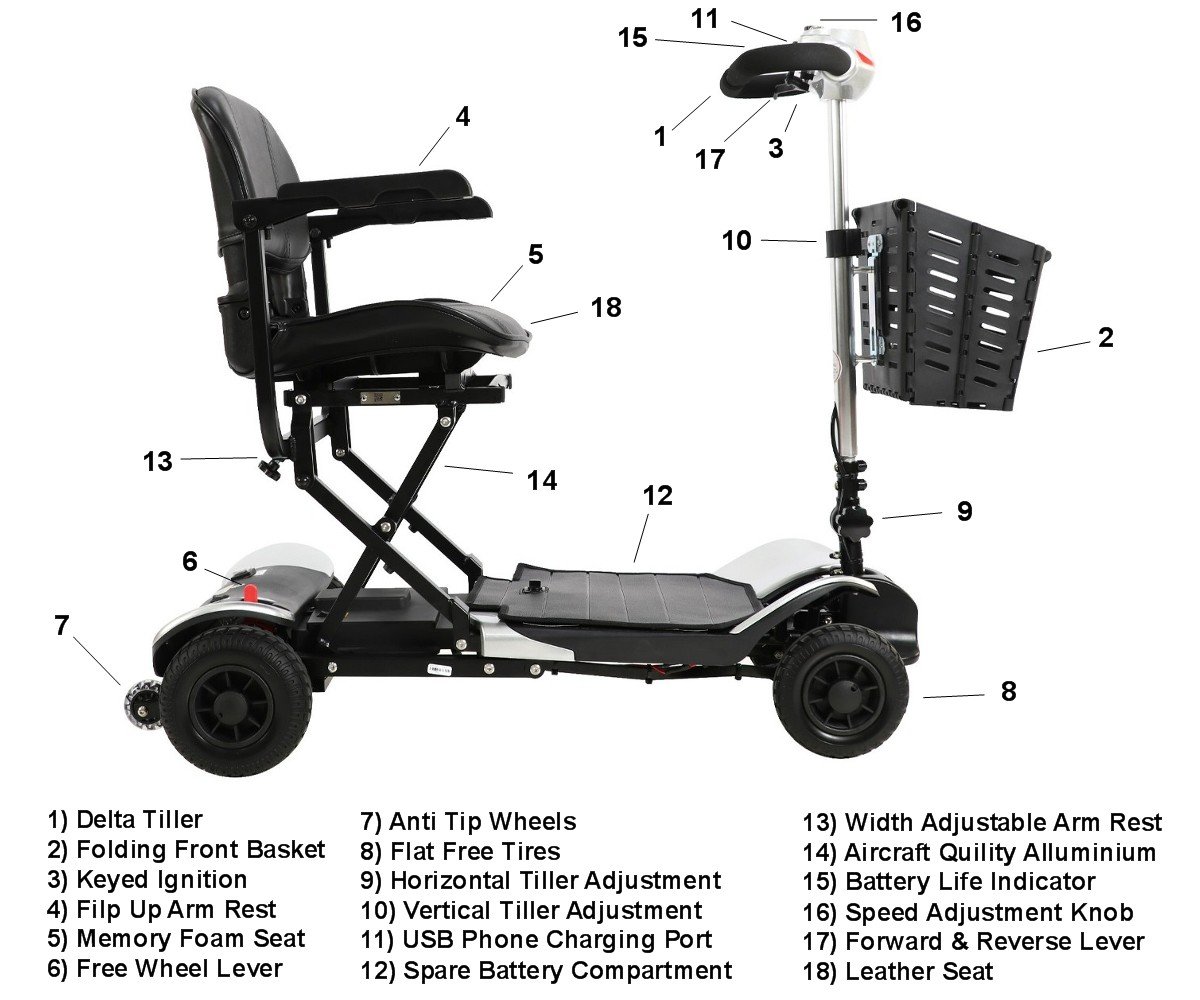

Lightweight space-saving design, Increased range.
Flat-free tires for worry-free travel.
Wraparound delta handles make driving easy, even for those who can only use one hand.
LED battery gauge easy to read, even at night.
Delta Tiller that allows users to infinitely adjust thee tiller/steering column both front to back as well as Up & Down.
Heavy Duty – Flat Free Tires with thick tread that provides excellent traction. The Optimus is also equipped with anti tip wheels making it even safer and more stable.
Front “Rack and Pinion” steering makes it fun, easy and stable to operate.
Easily adjust your speed with the high performance potentiometer or speed adjustment dial.
The Optimus comes standard with a USB port built in to the Dash or Tiller allowing users to easily charge their cell phone or other devices.
Optimus Is Easily One Of The World’s Lightest 4 Wheel Automatic Folding Scooters, Weighting Only 52 Pounds. Optimus Automatically Folds Into A Small Compartment With The Simple Push Of A Button That Will Fit In The Trunk Of ‘Any’ Car.

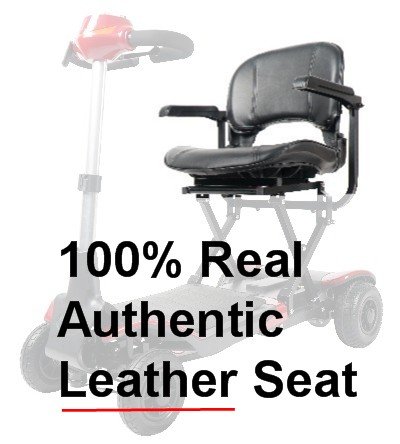

Optimus comes standard with a “LEATHER” (Memory Foam) Seat making it extremely comfortable and durable.

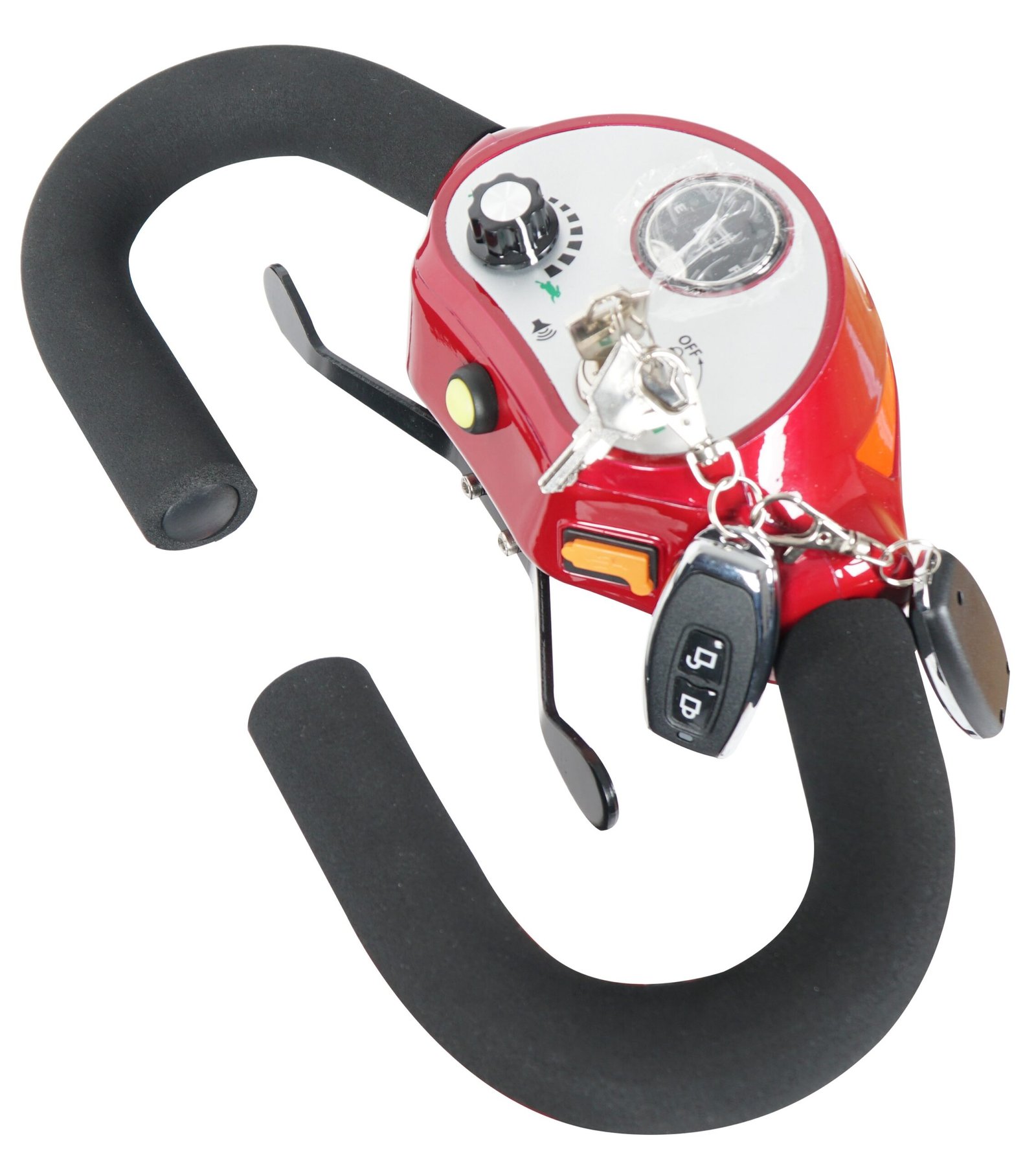

The Optimus is equipped with a delta tiller making it easier to operate and has a keyed ignition for security as well as battery life indicator, horn and speed potentiometer with forward and reverse leavers.
The Optimus comes with a Lithium-ion battery pack. Lithium-ion batteries last ten times longer then a standard lead acid battery and you can fully charge them in under two hours verses a lead battery that takes eight to twelve hours to fully charge.
You receive a second/spare Lithium-ion battery pack free giving users a piece of mind when traveling long distance.
ULTIMATE CONVENIENCE
The Optimus is fully airline approved & certified giving you the freedom to travel the world and go where you might not have thought possible before.
The Optimus portable scooter comes fully assembled. No tools or assembly required!
Whether you’re traveling around the globe, taking a cruise, or simply going on a shopping trip, the Optimus Auto Folding Scooter will make your excursion more fun, relaxing, and enjoyable.

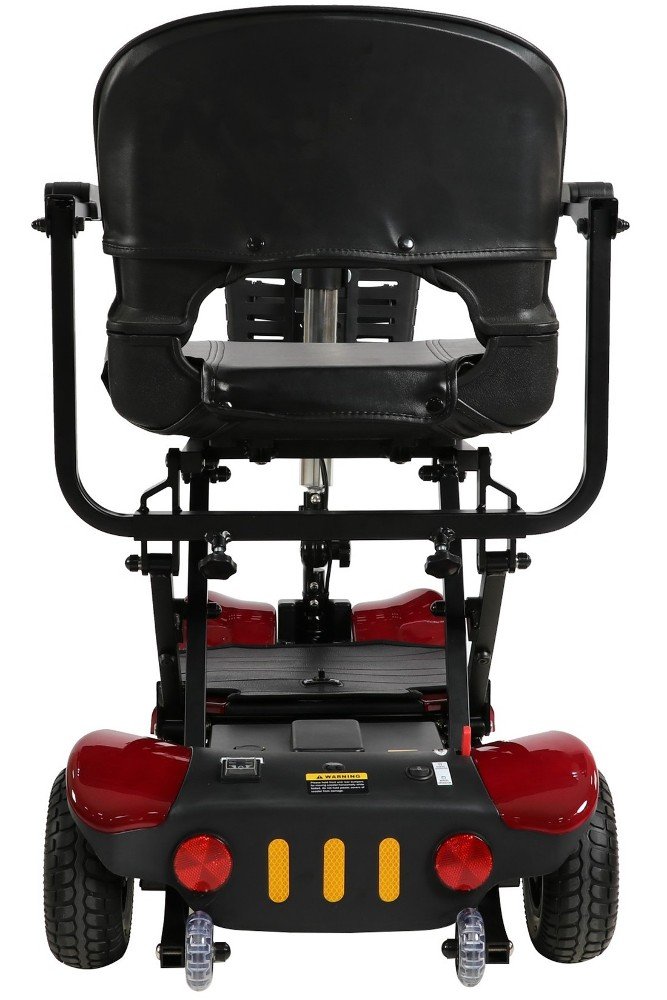

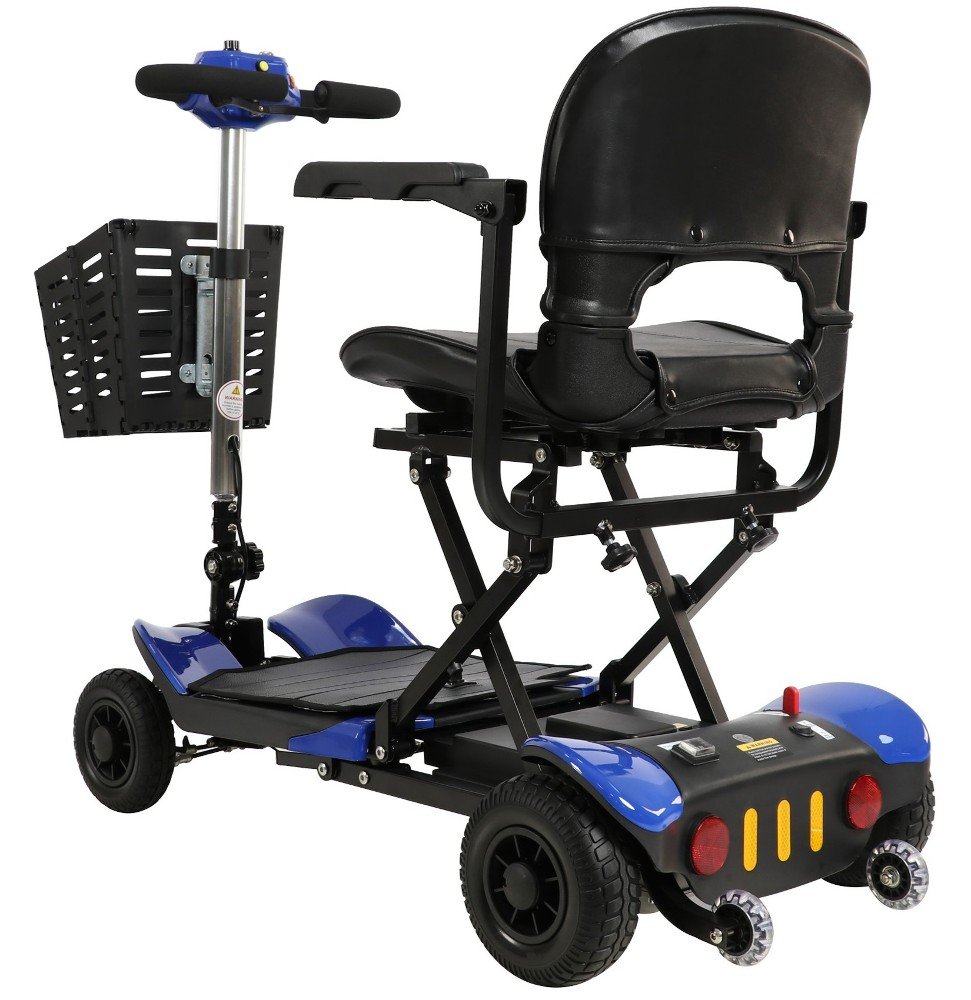

Rear Reflectors & Anti Tip Wheels That Prevent A User From Flipping Backwards Proving A Higher Level Of Safety And Giving The User A Piece Of Mind Knowing That Safety Is Built Into The Optimus.
COMFORT TO LAST
This lightweight foldable mobility scooter features generous leg and foot room, and the wide 18″ (LEATHER) “Memory Foam” seat holds up to 300 lbs.

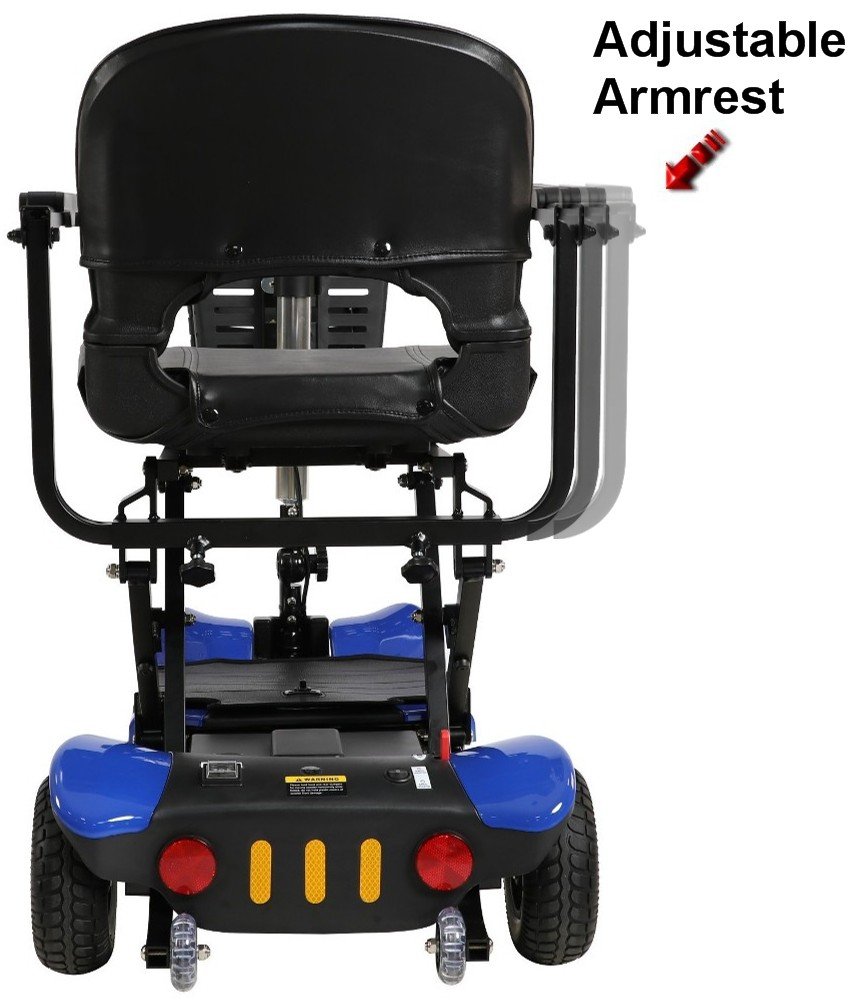

The Optimus is one of the few folding scooters that come standard with highly adjustable armrests on the seat.
The user-friendly controls are simple to operate, and the tiller is also height-adjustable.
Large enough to be comfortable but small enough to fit down narrow store aisles, walkways, and ramps.
COMPACT & DURABLE

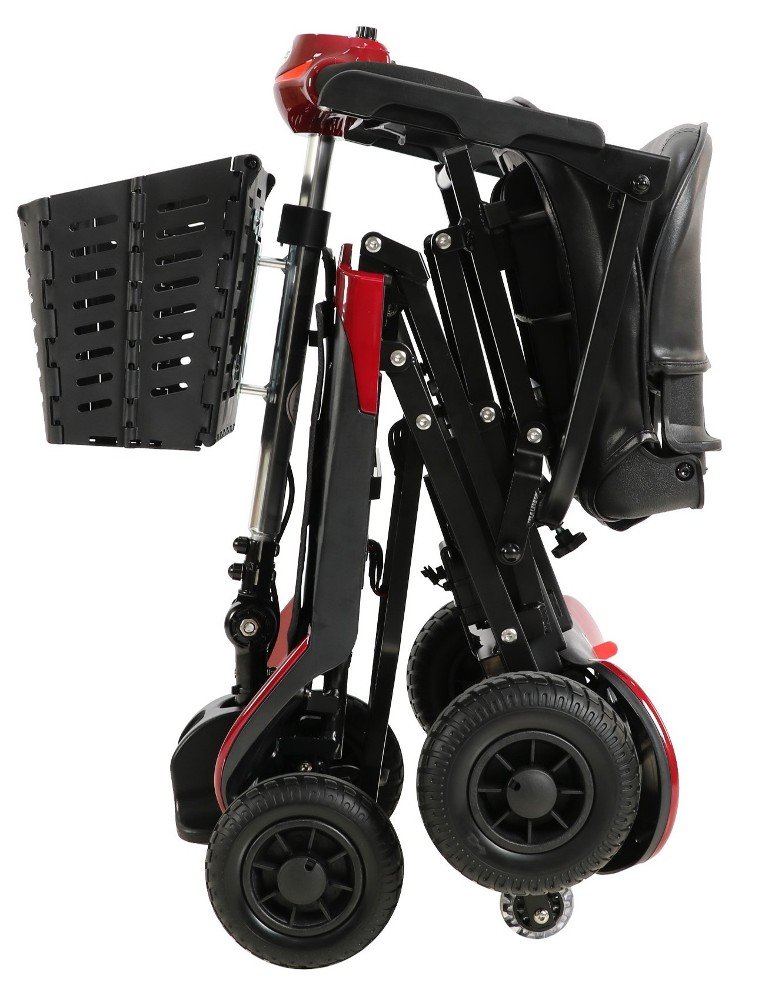

The ultra portable Optimus Auto Folding Scooter effortlessly folds to the size of a small suitcase that you can roll behind you.
It fits easily into the trunk of most cars and all SUV’s, vans, and trucks.
Folds to a compact size that’s small enough for buses and trains.
This compact scooter can easily be stored in small closets, laundry rooms, and other small spaces.
The aluminum alloy frame is durable and long-lasting.
AIRLINE APPROVED
You can take the Optimus on your next flight!
The lightweight lithium battery is approved for safe air travel and offers up to 13.7 miles per charge.
Drive through the airport and right up to the plane door! Then simply fold with the remote and let the crew take it from there.*
Perfect for cruise ships, family vacations, holidays, and all your travels.
SELF FOLDING SCOOTER
With the simple touch of a button, this folding electric scooter automatically folds and unfolds in seconds.
No bending or straining your back to fold or disassemble your scooter.
The remote does it all for you!
Unfolding the Optimus as easy as turning on your television.
Optimus is the worlds leading self folding scooter. It comes with a remote control that allows you to fold and unfold the unit at the touch of a button, automatically. It features a new and improved frame design, automatic motor system, as well as a new sporty body design.
It is equipped with an airline approved lithium-ion battery that weighs only 52bs, bringing the total weight of the unit to 56lbs. It also features a new ergonomic steering wheel with speed control, horn, and a battery charge indicator. There is also on on-board button to automatically fold the Optimus in the event you don’t have your remote control with you. The unit can also be folded and unfolded manually.
If added stability is on your checklist, the Optimus is a perfect fit. It is a true four-wheeled mobility scooter, providing added stability over traditional three wheeled mobility scooters. So don’t let mobility challenges stop you from doing the things you enjoy doing. Like going shopping, to museums, amusement parks, family gatherings, traveling or just being able to have more independence. Experience more with Optimus.
Rear reflectors and Anti-Tip Wheels provide a final level of security making Optimus very stable and safe to drive on multiple surfaces.
Don’t forget about Optimus highly, easy to adjust armrest again adding comfort and stability allowing the user to position the arm rest that is best suited and most comfortable for each user.

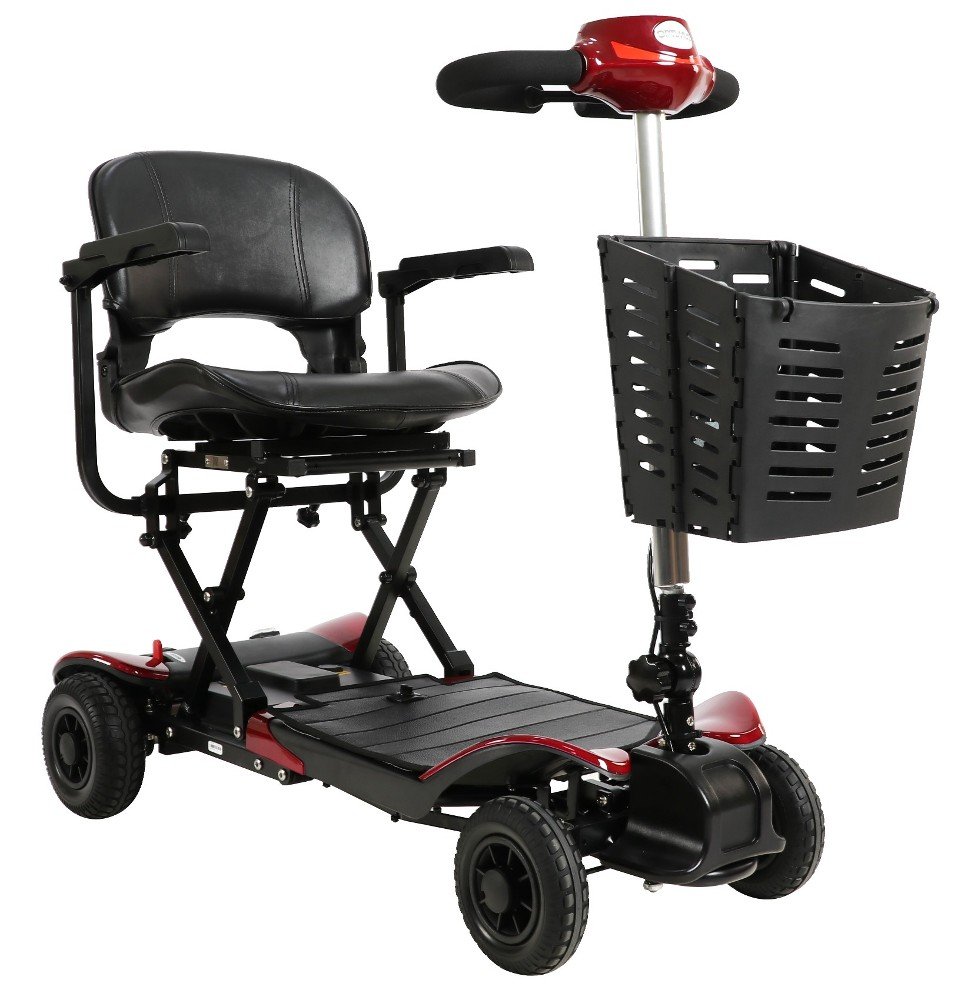

Heavy Duty (Foldable) Front Basket That Is Easy To Take On & Off. Easy to remove “Slip On And Off” Front Basket.
Heavy Duty Basket & Bracket that can support many items even heavy ones.

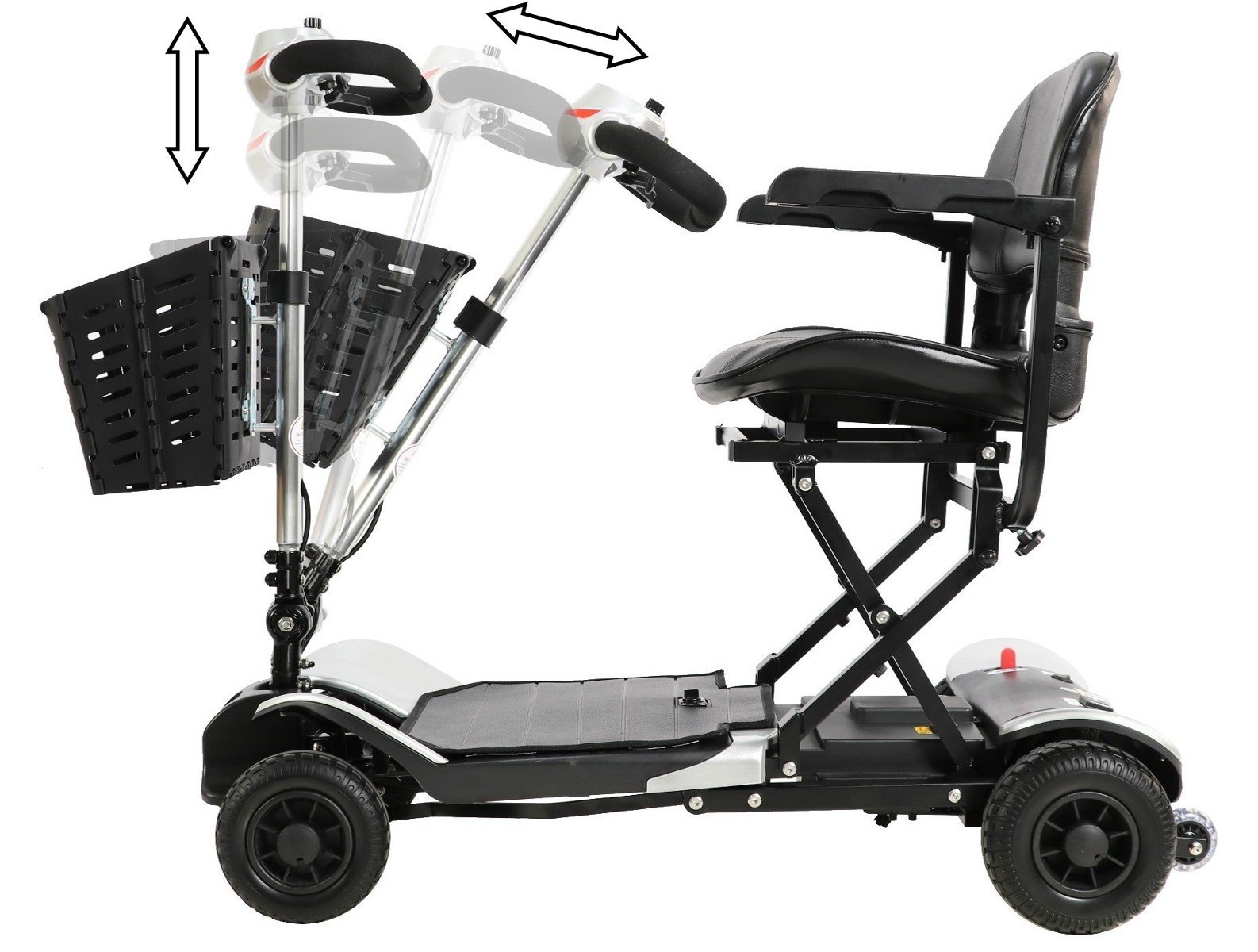

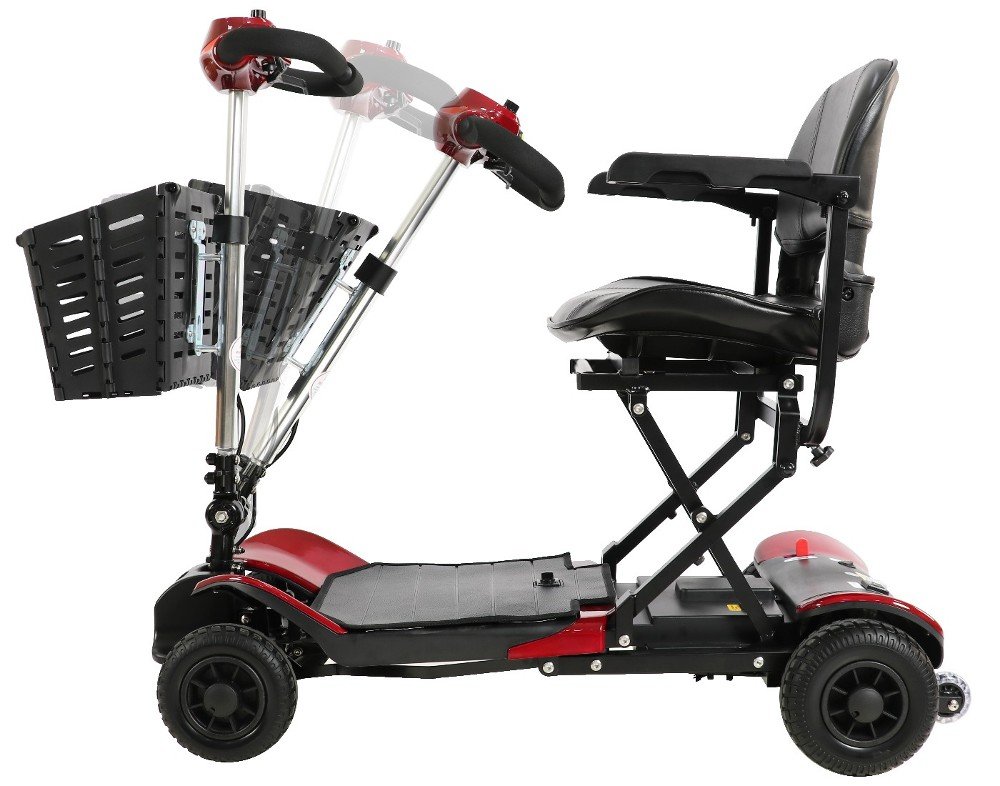

Tiller Adjustment Knob That Allows User’s To Adjust The Steering Tiller Closer To Them Or Further Away. Users Can Select The Virtual Position That Makes Them Most Comfortable. The Optimus Is One Of Very Few Designs That Allow You To Adjust The Height Of The Tiller As Well As The Angle Front To Back.
Each & Every Individual Can Find The Bet Position That Fits Their Needs.
The Optimus Has A Durable High Quality Automotive Finish That Is Extremely Resistant To Scratches & Chips, However In The Event You Would Like The Ability To Touch Up Scratches If They Should Occur Over The Years We Have Made Touch Up Paint Available Free With Every Order.
Touch Up Paint Available in All Colors.
Optimus Comes With Two Year Limited Warranty. First Year Parts & Labor (In Home Service) Second Year Parts Only.
| Specification | Metric | Imperial |
| Model | Optimus | |
| Unfolded Size | 1050 * 550 * 870 mm (L*W*H) | 41“ * 22″ * 34″ (L*W*H) |
| Folded Size | 432 * 432 * 774 mm (L*W*H) | 17“ * 17″ * 30.5″ (L*W*H) |
| Weight Capacity | 136 kg | 300 Lbs |
| Seat (Leather Memory Foam) |
||
| Width | 421mm | 17″ Inch |
| Depth | 421mm | 17″ Inch |
| Height | 457mm | 18″ Inch |
| Back height | 400mm | 15.75″ Inch |
| Motor | ||
| Type | brushless DC motor | |
| Rated Power | 250 W*2pcs | |
| Input Power | DC 24V | |
| Brake System | intelligent electromagnetic brake | |
| Battery | ||
| Type | lithium battery | |
| Capacity | 6 Ah*1pcs | MSDS Sheet |
| Output Voltage | DC 24V | |
| PCS | Standard | |
| Controller | ||
| Type/Plug Type | assist type/European standard, 2 core | |
| Input Power | AC 100-220 V, 50-60Hz | International (Use Anywhere In The World) |
| Output Voltage/Current | DC 24V, 2A | |
| Front Wheel | ||
| Front Casters | (177 mm x 68 mm) | (7″ × 2.7″) |
| Type | solid tire | |
| Material | PU | |
| PCS | 2 PCS | |
| Rear Wheel | ||
| Outer Diameter/Tire Width | (203 mm x 72 mm) | (8″ ×2.8″) |
| Type | Solid tire | |
| Material | PU | |
| Number | 2 PCS | |
| Weight | ||
| Without Battery | 25.5 kg | 52 Pounds |
| With Battery | 28.5kg | 56 Pounds |
| Maximum Grade | 12° | |
| Driving Range | 24km | 13 Miles |
| Max Speed | 8 km/h | (4.75 mph) |
| Turning Radius | 939 mm | 37″ |
| Highest Obstacle Capability | 90.6 mm | (3.57″) |
